HIGH CAPACITY INTERMODAL AND BULK HANDLING REACH STACKERS

TECHNICAL SPECIFICATIONS

HIGH CAPACITY INTERMODAL AND BULK HANDLING REACH STACKERS
Model F500.RS6
Attachment type 20’/40′ Top Pick Spreader
Load capacity on tires at 1st/2nd/3rd row (no stab) kg 46.000 | 39.000 | 21.000
Load centre distance at 1st/2nd/3rd row mm 1.780 | 3.850 | 6.400
Load capacity on stabilizers at 1st/2nd/3rd row * kg 46.000 | 43.000 | 27.000
Load centre to front face of the truck mm 930
Lifting height under twist-lock mm 16.200
Stacking Ability – containers 1 over 5 = 6 x 8’6”
Wheelbase mm 6.500
Service weight – unladen kg 80.700
EU Stage 3a Engine make&model (Rated Power) (kW) CUMMINS QSM11 (250)
EU Stage 4 Engine make&model (Rated Power) (kW) SCANIA DC13 (257)
Transmission make&model DANA TE32
Service Brakes Wet Disk on front wheels
Tires size 18.00-33
Overall width – excluding Spreader mm 4.185
Overall length – including spreader mm 12.000
Overall height mm 4.900
Seat height mm 2.820
Spreader rotation – clockwise/anticlockwise deg -105 / +195
Spreader side-shift – left / right mm +800 / -800
Boom Angle (min / max) deg 0 /60

∗ optional

HIGH CAPACITY INTERMODAL AND BULK HANDLING REACH STACKERS
Model F500.RS7
Attachment type 20’/40′ Top Pick Spreader
Load capacity on tires at 1st/2nd/3rd row (no stab) kg 46.000 | 44.000 | 25.000
Load centre distance at 1st/2nd/3rd row mm 1.780 | 3.850 | 6.400
Load capacity on stabilizers at 1st/2nd/3rd row * kg 46.000 | 46.000 | 33.000
Load centre to front face of the truck mm 930
Lifting height under twist-lock mm 16.200
Stacking Ability – containers 1 over 5 = 6 x 8’6”
Wheelbase mm 7.500
Service weight – unladen kg 84.000
EU Stage 3a Engine make&model (Rated Power) (kW) CUMMINS QSM11 (250)
EU Stage 4 Engine make&model (Rated Power) (kW) SCANIA DC13 (257)
Transmission make&model DANA TE32
Service Brakes Wet Disk on front wheels
Tires size 18.00-33
Overall width – excluding Spreader mm 4.185
Overall length – including spreader mm 12.000
Overall height mm 4.800
Seat height mm 2.820
Spreader rotation – clockwise/anticlockwise deg -105 / +195
Spreader side-shift – left / right mm +800 / -800
Boom Angle (min / max) deg 0 /60

∗ optional

HIGH CAPACITY INTERMODAL AND BULK HANDLING REACH STACKERS

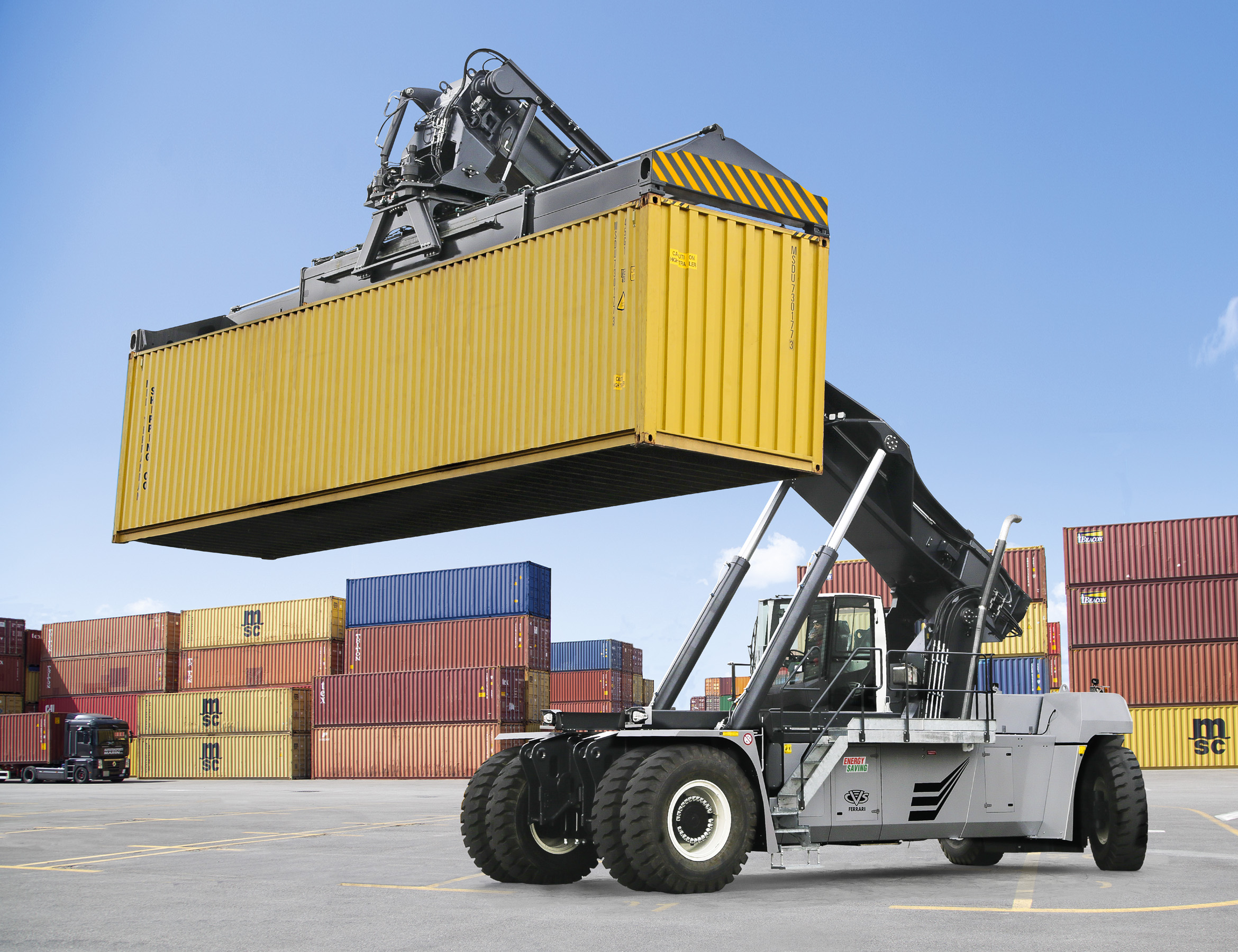

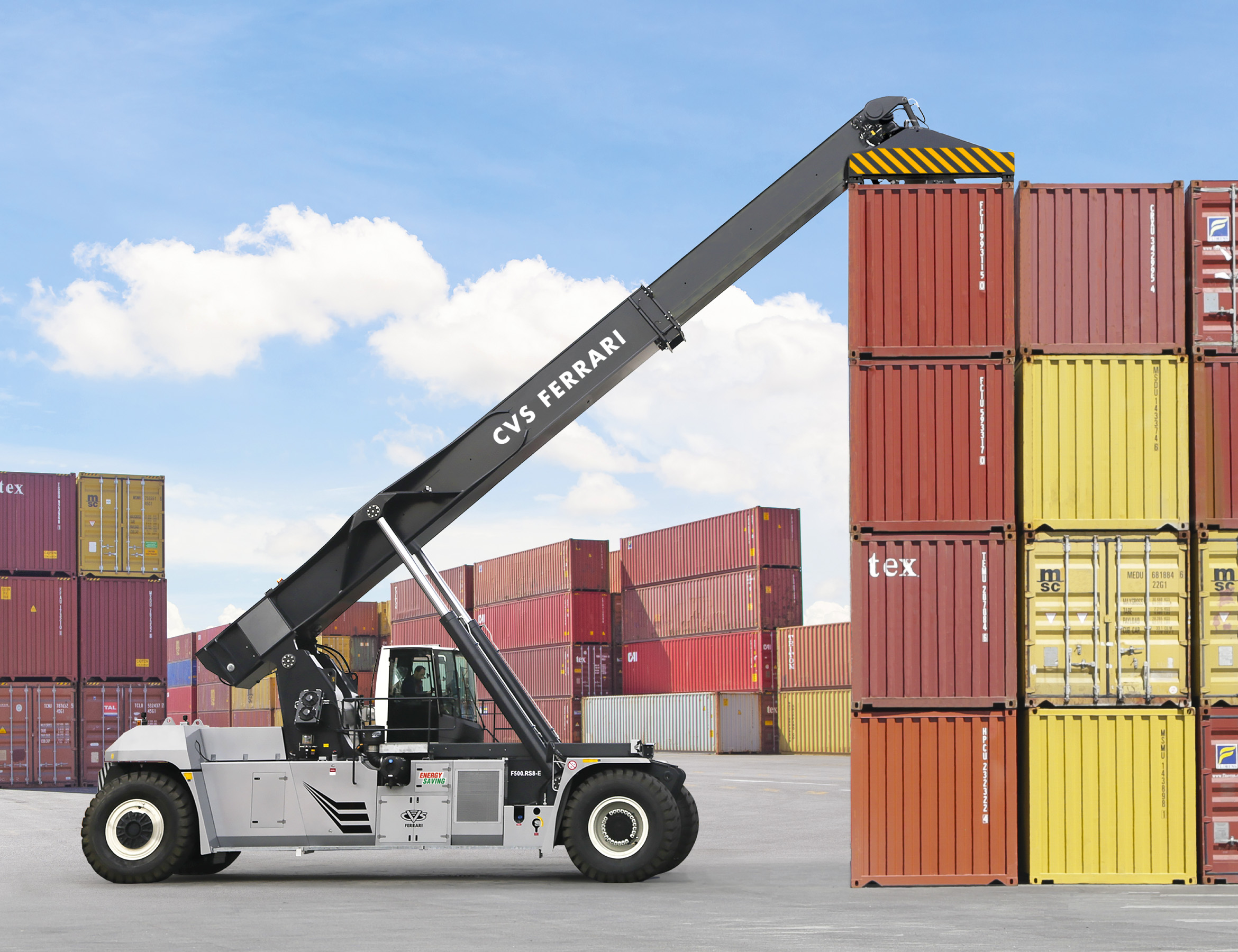

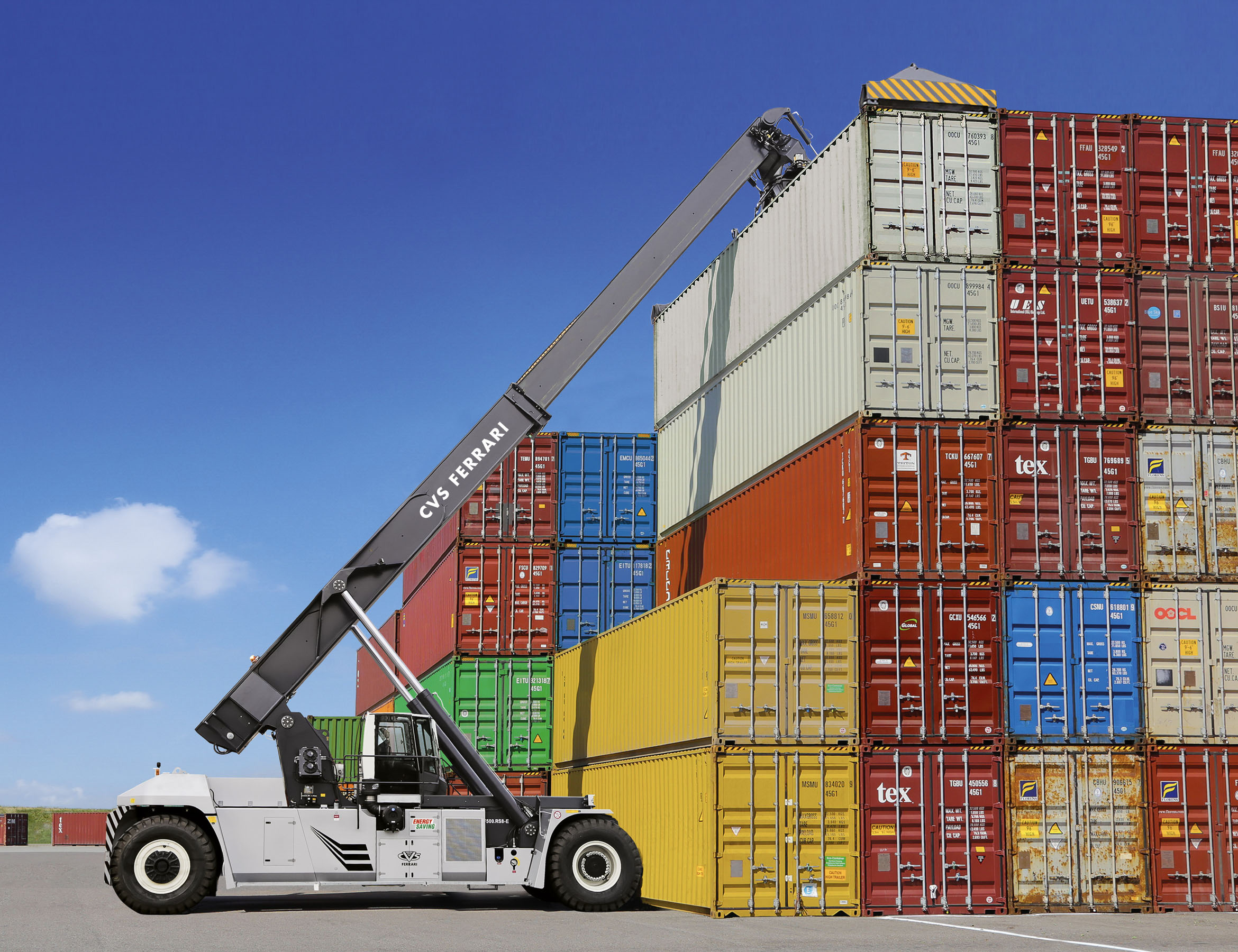

Model F500.RS8
Attachment type 20’/40′ Top Pick Spreader
Load capacity on tires at 1st/2nd/3rd row (no stab) kg 46.000 | 46.000 | 28.000
Load centre distance at 1st/2nd/3rd row mm 1.780 | 3.850 | 6.400
Load capacity on stabilizers at 1st/2nd/3rd row * kg 46.000 | 46.000 | 38.000
Load centre to front face of the truck mm 930
Lifting height under twist-lock mm 16.200
Stacking Ability – containers 1 over 5 = 6 x 8’6”
Wheelbase mm 8.000
Service weight – unladen kg 87.000
EU Stage 3a Engine make&model (Rated Power) (kW) CUMMINS QSM11 (250)
EU Stage 4 Engine make&model (Rated Power) (kW) SCANIA DC13 (257)
Transmission make&model DANA TE32
Service Brakes Wet Disk on front wheels
Tires size 18.00-33
Overall width – excluding Spreader mm 4.185
Overall length – including spreader mm 12.000
Overall height mm 4.800
Seat height mm 2.820
Spreader rotation – clockwise/anticlockwise deg -105 / +195
Spreader side-shift – left / right mm +800 / -800
Boom Angle (min / max) deg 0 /60

∗ optional
