Project Description
SUPER HEAVY DUTY FORK LIFT TRUCKS
TECHNICAL SPECIFICATIONS
| SUPER HEAVY DUTY FORK LIFT TRUCKS | ||
|---|---|---|

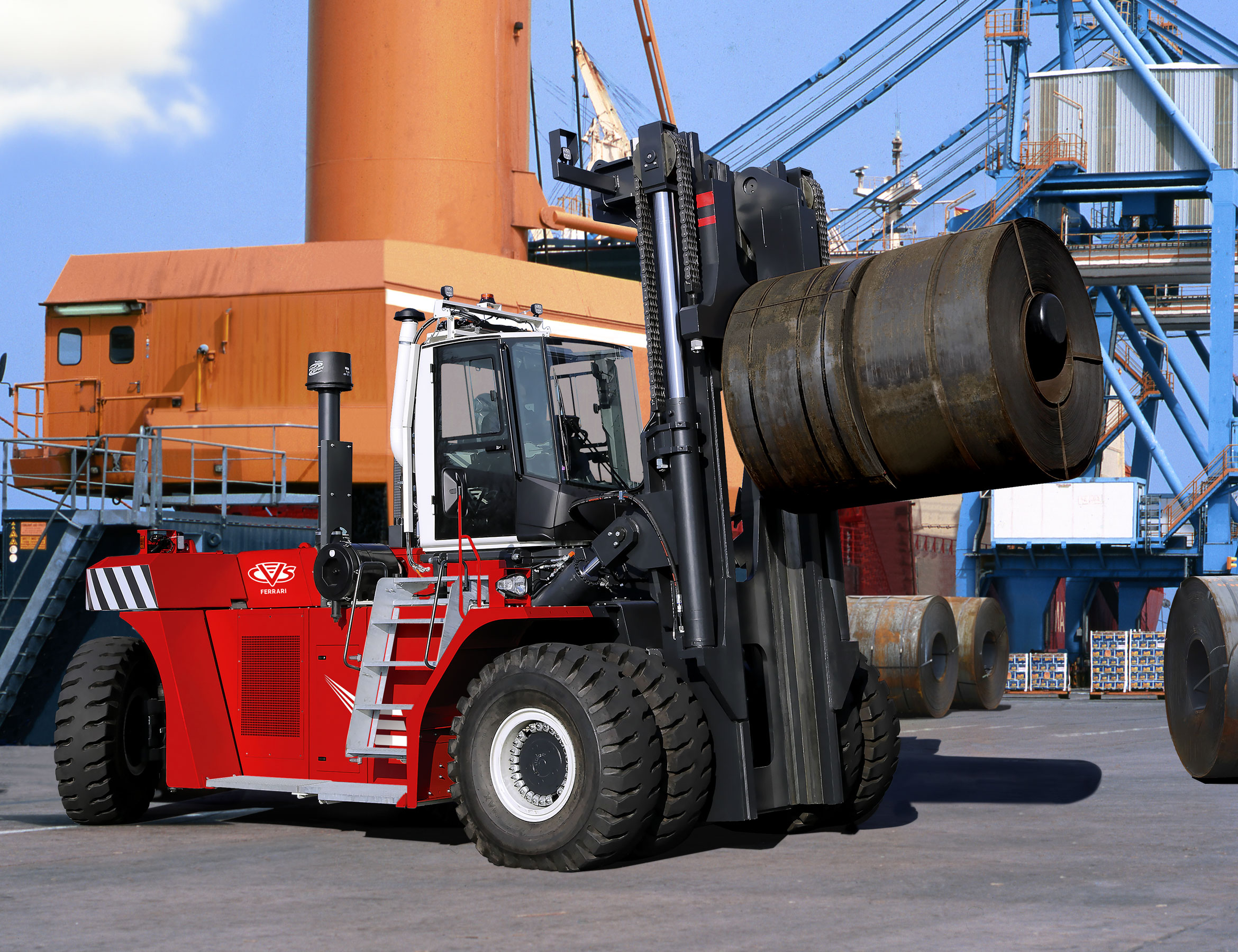

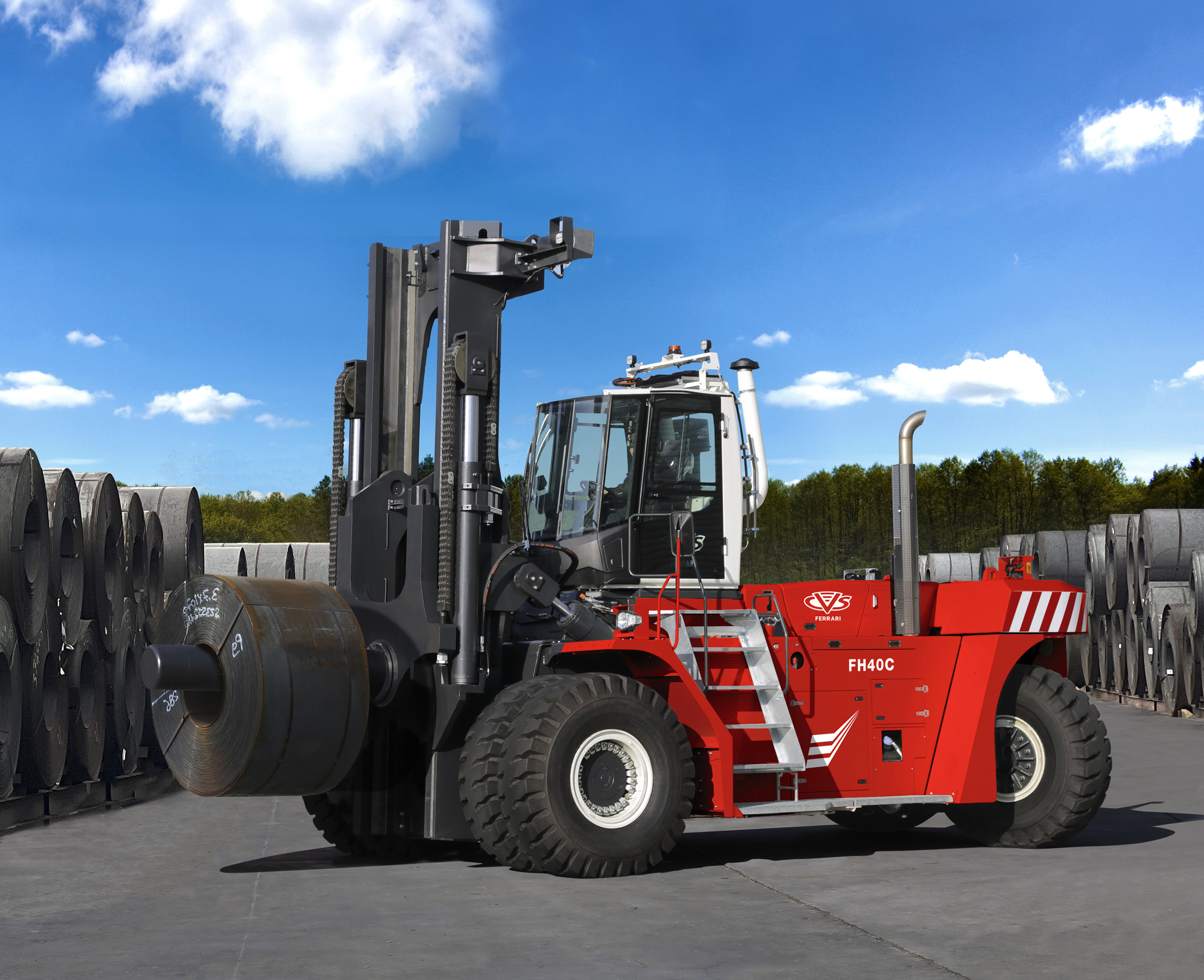

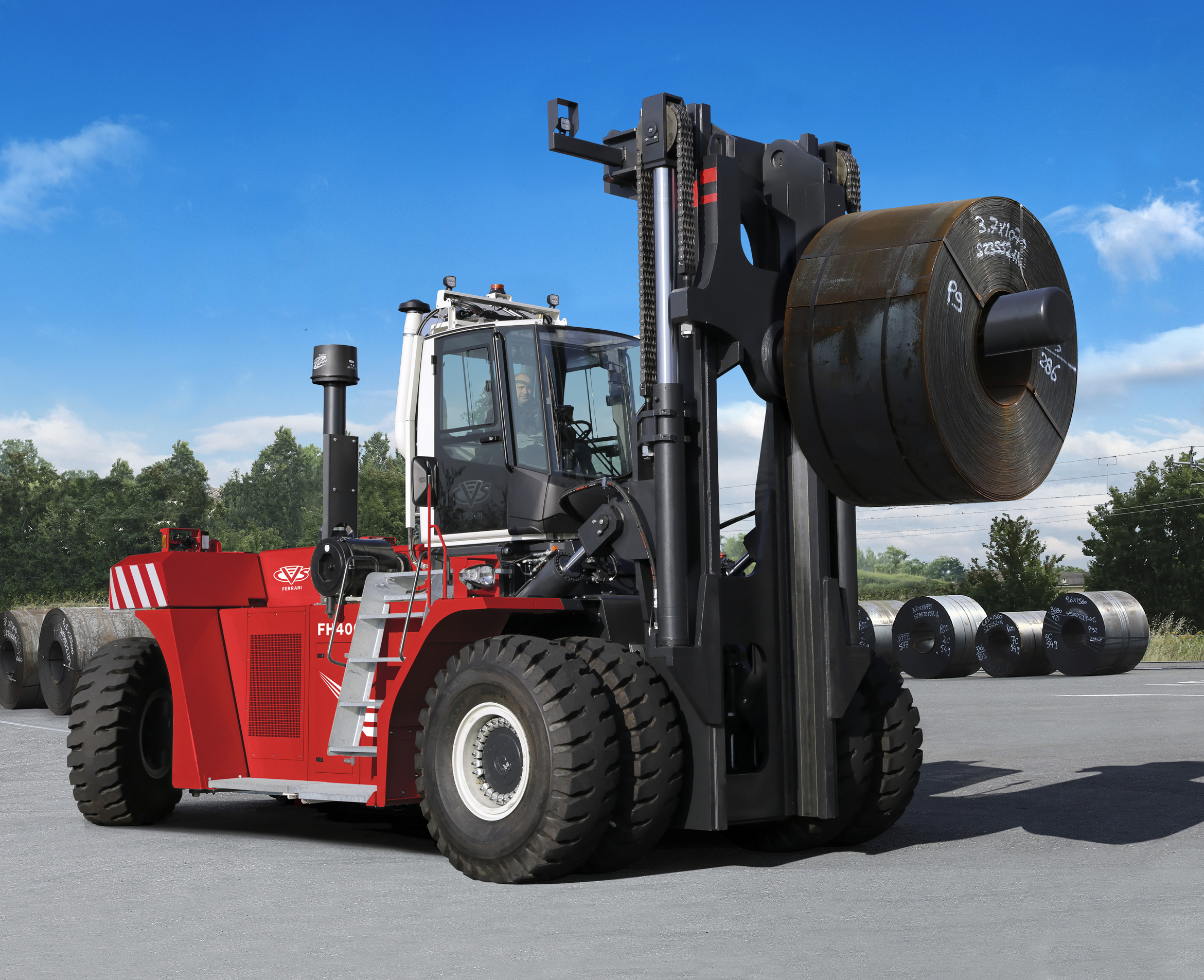

| Model | FH40C | |
| Attachment type | Coil ram | |
| Load capacity on tires | kg | 40.000 |
| Load centre distance (+/- out/in rach) | mm | 1.200 |
| Load centre to centre of front axle | mm | 2.380 |
| Standard lifting height on forks (option) | mm | 4.000 |
| Max available lift height on forks (option) | mm | 8.000 |
| Wheelbase | mm | 5.000 |
| Service weight (unladen) | kg | 55.600 |
| EU Stage IIIa Engine make&model (Rated Power) | (kW) | CUMMINS X12 (250) |
| EU Stage V Engine make&model (Rated Power) | (kW) | CUMMINS X12 (250) |
| Transmission make&model | DANA TE30 / 5-3 | |
| Service Brakes | Multiple wet disk brakes | |
| Tires size | 18.00-25 | |
| Overall width | mm | 3.800 |
| Overall length (including forks) | mm | 9.300 |
| Overall height (mast lowered) | mm | 4.600 |
| Seat height | mm | 3.000 |
| Mast tilt, forward / backward | deg | 5 / 10 |
| Forks side-shift | mm | n/a |
| Forks size (L x W x T) | mm | 2140×370 |
∗ optional
| SUPER HEAVY DUTY FORK LIFT TRUCKS | ||
|---|---|---|
| Model | FH38 | |
| Attachment type | Forks | |
| Load capacity on tires | kg | 38.000 |
| Load centre distance (+/- out/in rach) | mm | 1.200 |
| Load centre to centre of front axle | mm | 2.620 |
| Standard lifting height on forks (option) | mm | 4.000 |
| Max available lift height on forks (option) | mm | 8.000 |
| Wheelbase | mm | 5.000 |
| Service weight (unladen) | kg | 59.500 |
| EU Stage 3a Engine make&model (Rated Power) | (kW) | CUMMINS X12 (250) |
| EU Stage V Engine make&model (Rated Power) | (kW) | CUMMINS X12 (250) |
| Transmission make&model | DANA TE30 / 5-3 | |
| Service Brakes | Multiple wet disk brakes | |
| Tires size | 18.00-25 | |
| Overall width | mm | 3.800 |
| Overall length (including forks) | mm | 9.640 |
| Overall height (mast lowered) | mm | 4.600 |
| Seat height | mm | 3.000 |
| Mast tilt, forward / backward | deg | 5 / 10 |
| Forks side-shift | mm | +400 / -400 |
| Forks size (L x W x T) | mm | 2400x300x135 |
∗ optional
| SUPER HEAVY DUTY FORK LIFT TRUCKS | ||
|---|---|---|

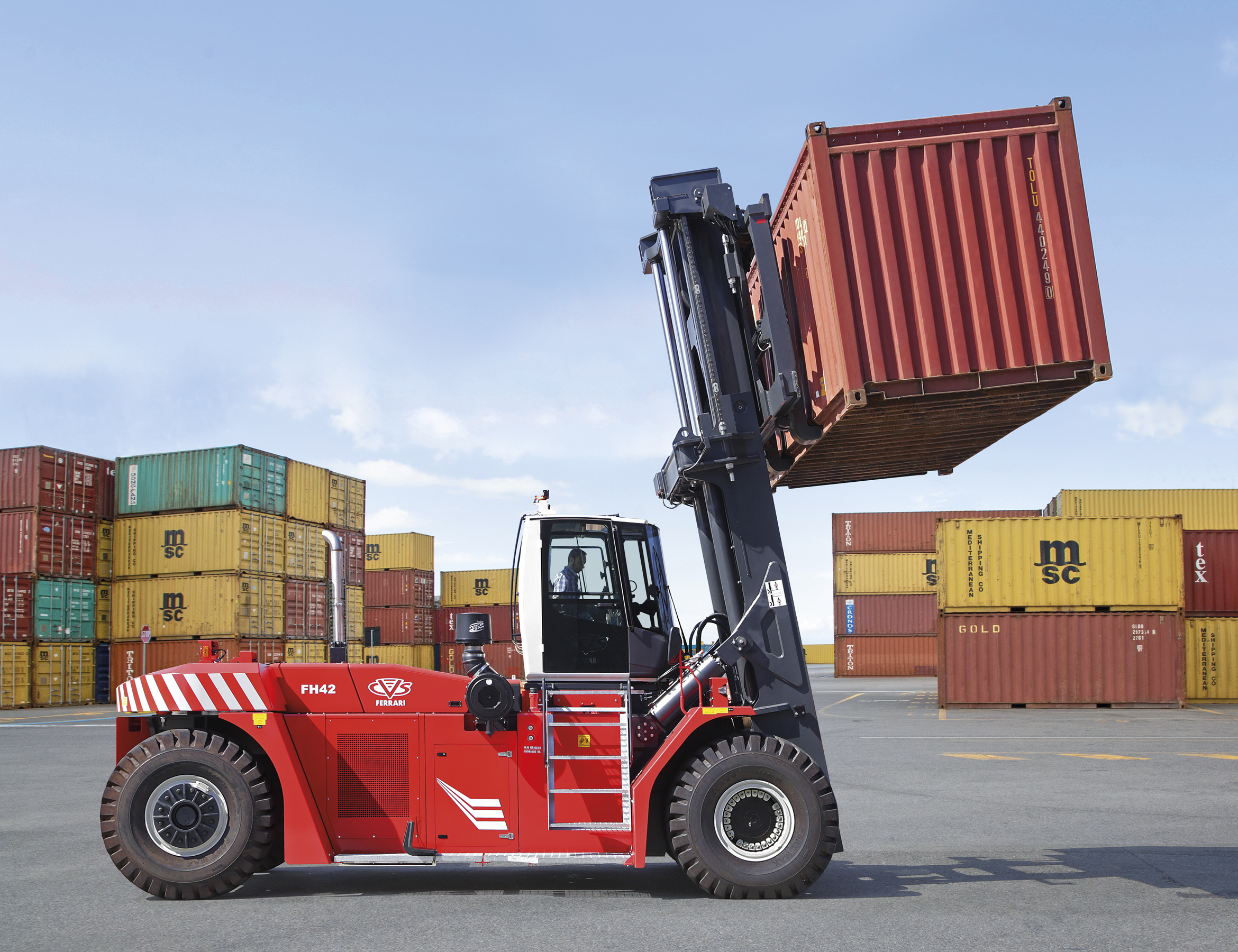

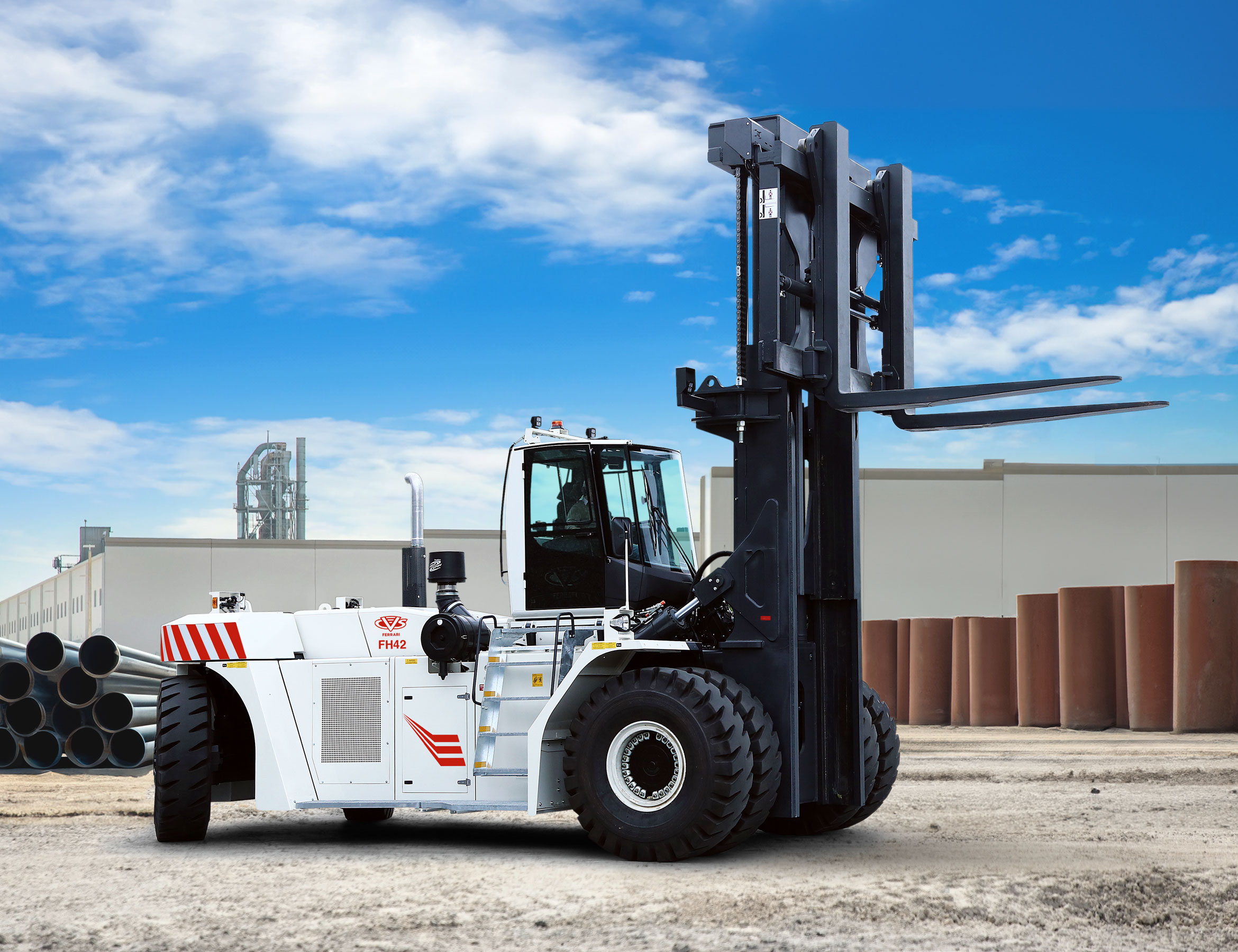

| Model | FH42 | |
| Attachment type | Forks | |
| Load capacity on tires | kg | 42.000 |
| Load centre distance (+/- out/in rach) | mm | 1.200 |
| Load centre to centre of front axle | mm | 2.620 |
| Standard lifting height on forks (option) | mm | 4.000 |
| Max available lift height on forks (option) | mm | 8.000 |
| Wheelbase | mm | 5.400 |
| Service weight (unladen) | kg | 60.500 |
| EU Stage IIIa Engine make&model (Rated Power) | (kW) | CUMMINS X12 (250) |
| EU Stage V Engine make&model (Rated Power) | (kW) | CUMMINS X12 (250) |
| Transmission make&model | DANA TE30 / 5-3 | |
| Service Brakes | Multiple wet disk brakes | |
| Tires size | 18.00-25 | |
| Overall width | mm | 4.185 |
| Overall length (including forks) | mm | 10.220 |
| Overall height (mast lowered) | mm | 4.600 |
| Seat height | mm | 2.800 |
| Mast tilt, forward / backward | deg | 5 / 10 |
| Forks side-shift | mm | +400 / -400 |
| Forks size (L x W x T) | mm | 2400x300x135 |
∗ optional
| SUPER HEAVY DUTY FORK LIFT TRUCKS | ||
|---|---|---|

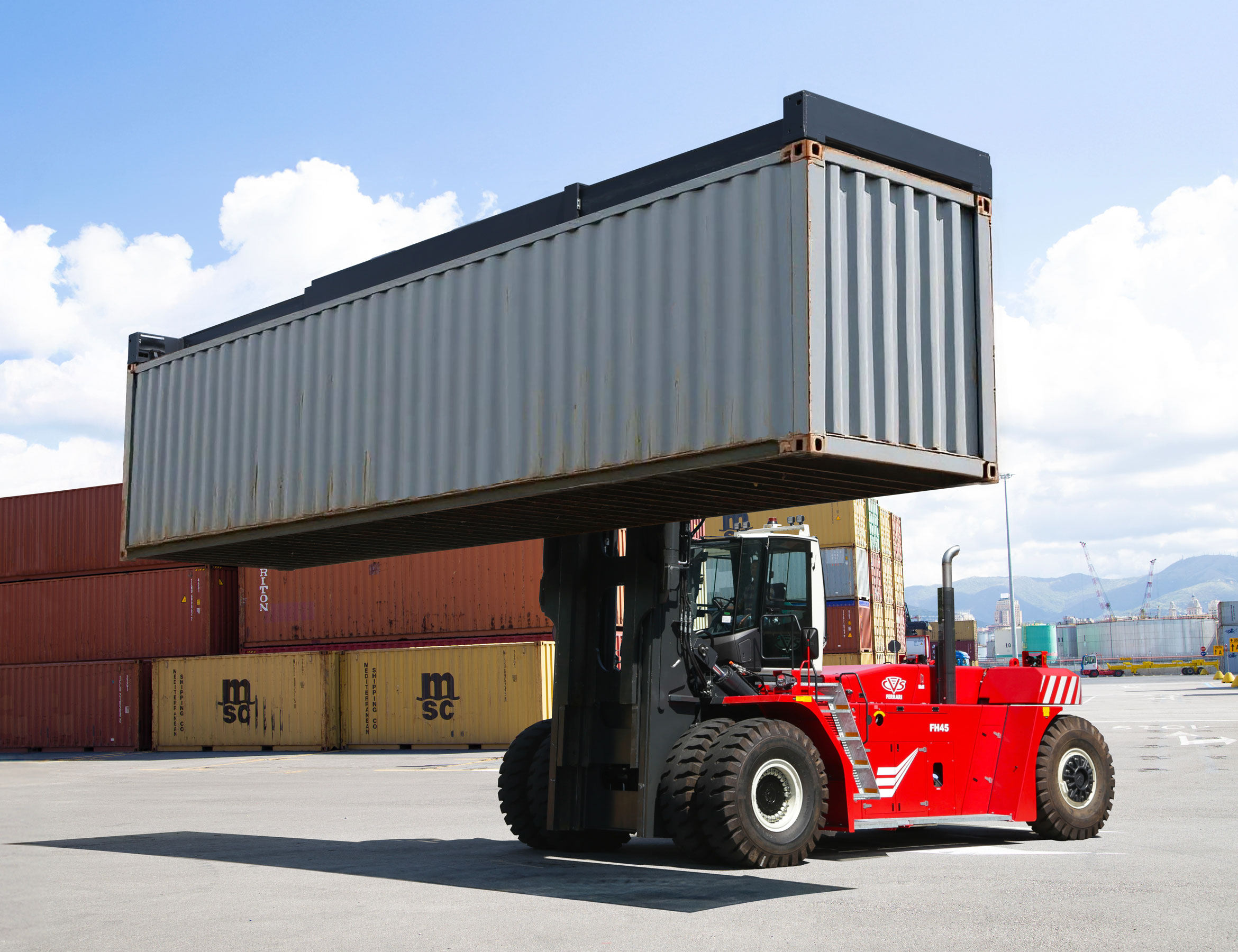

| Model | FH45 | |
| Attachment type | Forks | |
| Load capacity on tires | kg | 45.000 |
| Load centre distance (+/- out/in rach) | mm | 1.200 |
| Load centre to centre of front axle | mm | 2.620 |
| Standard lifting height on forks (option) | mm | 4.000 |
| Max available lift height on forks (option) | mm | 8.000 |
| Wheelbase | mm | 5.900 |
| Service weight (unladen) | kg | 61.500 |
| EU Stage 3a Engine make&model (Rated Power) | (kW) | CUMMINS X12 (250) |
| EU Stage V Engine make&model (Rated Power) | (kW) | CUMMINS X12 (250) |
| Transmission make&model | DANA TE30 / 5-3 | |
| Service Brakes | Multiple wet disk brakes | |
| Tires size | 18.00-25 | |
| Overall width | mm | 4.185 |
| Overall length (including forks) | mm | 10.720 |
| Overall height (mast lowered) | mm | 4.600 |
| Seat height | mm | 2.800 |
| Mast tilt, forward / backward | deg | 5 / 10 |
| Forks side-shift | mm | +400 / -400 |
| Forks size (L x W x T) | mm | 2400x300x135 |
∗ optional
| SUPER HEAVY DUTY FORK LIFT TRUCKS | ||
|---|---|---|

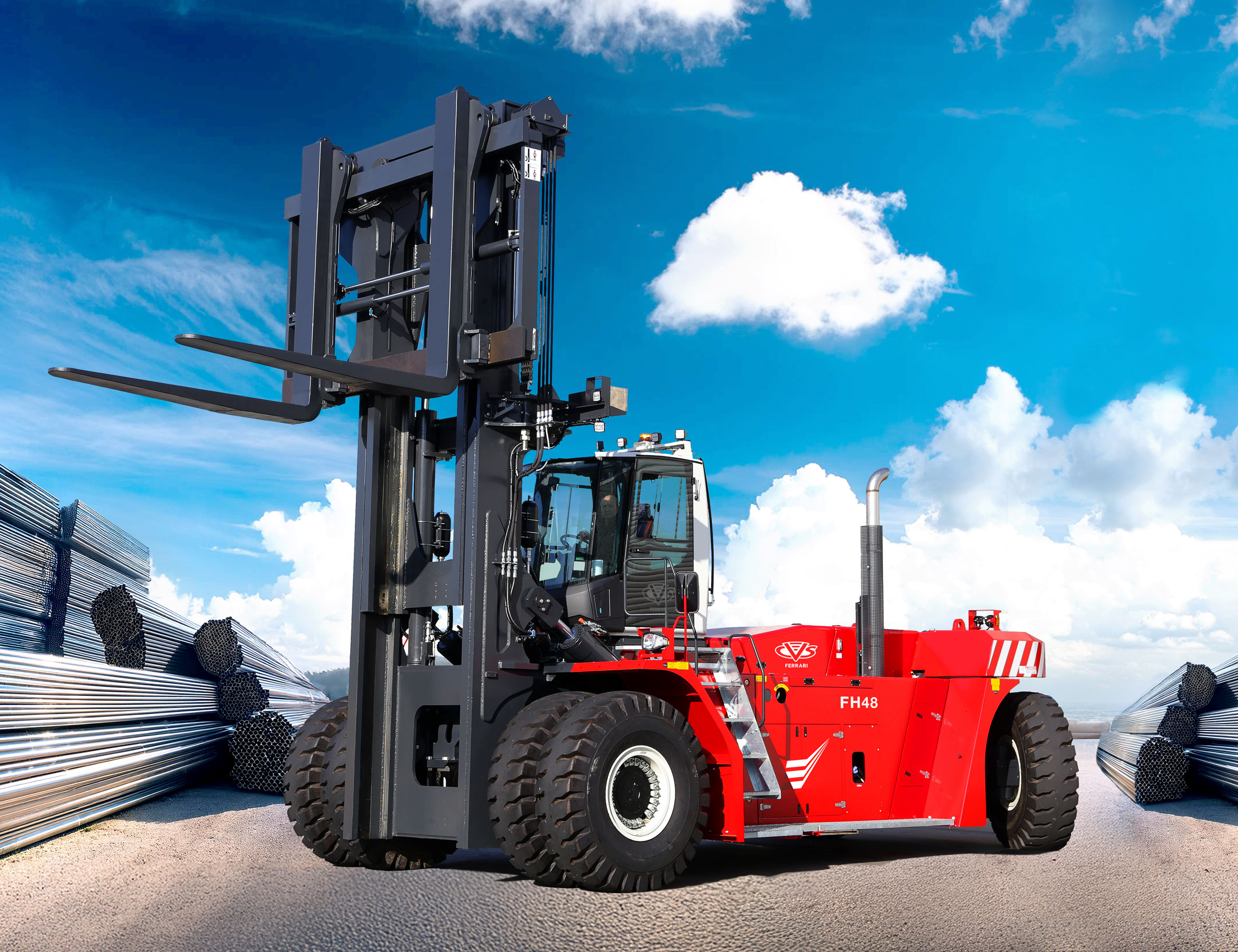

| Model | FH48 | |
| Attachment type | Forks | |
| Load capacity on tires | kg | 48.000 |
| Load centre distance (+/- out/in rach) | mm | 1.200 |
| Load centre to centre of front axle | mm | 2.730 |
| Standard lifting height on forks (option) | mm | 4.000 |
| Max available lift height on forks (option) | mm | 10.000 |
| Wheelbase | mm | 5.900 |
| Service weight (unladen) | kg | 63.500 |
| EU Stage 3a Engine make&model (Rated Power) | (kW) | CUMMINS X12 (250) |
| EU Stage V Engine make&model (Rated Power) | (kW) | CUMMINS X12 (250) |
| Transmission make&model | DANA TE30 / 5-3 | |
| Service Brakes | Multiple wet disk brakes | |
| Tires size | 18.00-25 | |
| Overall width | mm | 4.185 |
| Overall length (including forks) | mm | 10.640 |
| Overall height (mast lowered) | mm | 3.870 |
| Seat height | mm | 2.790 |
| Mast tilt, forward / backward | deg | 6 / 10 |
| Forks side-shift | mm | +400 / -400 |
| Forks size (L x W x T) | mm | 2400x300x135 |
∗ optional
| SUPER HEAVY DUTY FORK LIFT TRUCKS | ||
|---|---|---|
| Model | FH50 | |
| Attachment type | Forks | |
| Load capacity on tires | kg | 50.000 |
| Load centre distance (+/- out/in rach) | mm | 1.200 |
| Load centre to centre of front axle | mm | 2.730 |
| Standard lifting height on forks (option) | mm | 4.000 |
| Max available lift height on forks (option) | mm | 10.000 |
| Wheelbase | mm | 5.900 |
| Service weight (unladen) | kg | 65.000 |
| EU Stage 3a Engine make&model (Rated Power) | (kW) | CUMMINS X12 (250) |
| EU Stage V Engine make&model (Rated Power) | (kW) | CUMMINS X12 (250) |
| Transmission make&model | DANA TE30 / 5-3 | |
| Service Brakes | Multiple wet disk brakes | |
| Tires size | 18.00-25 | |
| Overall width | mm | 4.185 |
| Overall length (including forks) | mm | 10.640 |
| Overall height (mast lowered) | mm | 4.700 |
| Seat height | mm | 2.790 |
| Mast tilt, forward / backward | deg | 6 / 10 |
| Forks side-shift | mm | +400 / -400 |
| Forks size (L x W x T) | mm | 2440x300x150 |
∗ optional
